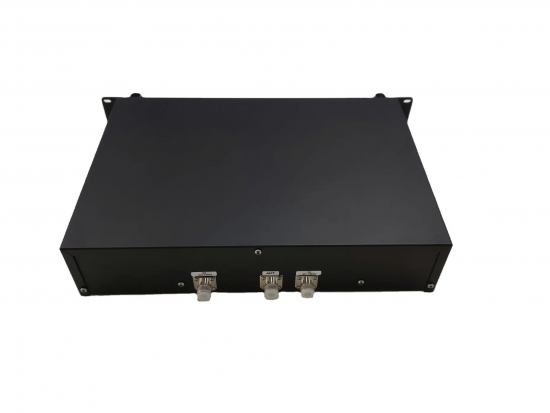

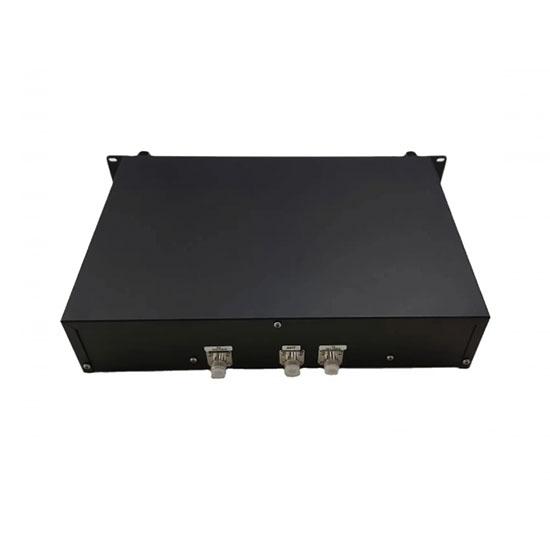

Customized 800-870MHz 100W Duplexer with High Isolation

800-870MHz Duplexer witth customized, High Power Capacity, High Isolation. It's Easy For Installation.

Item NO.:
MNL-DP-KSGQ-800D
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

100W 800-870MHz Duplexer with High Isolation 80dB Low Insertion Loss

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Product Name	Duplexer
Frequency Band(MHz)	800-870MHz
Maximum Input Power	100W
Insertion Loss	0.8dB
Bandpass width （MHz）	15
VSWR	≤1.25
Frequency Spacing(MHz)	45
Isolation	80dB
Normal Impedance	50Ω
Connector	N-F/BNC-F
Operating Temperature	-20℃ - +50℃

Outline Pictures:
800mhz duplexer
