Product Description
The 2Way Power Splitter (138-960MHz) is a high-reliability component featuring a distinctive Red Color for identification. Engineered for Public Safety Systems , it ensures stable signal distribution with low VSWR and minimal insertion loss.
Application Scenarios
- Public Safety Networks: Essential for emergency communication systems in police and fire departments.
- In-building Solutions (IBS): High-performance indoor coverage for basements and high-rise buildings.
- Outdoor Use: Fully protected against harsh weather with an IP65 waterproof rating .
Technical Specifications
| Model No. | MPS-190-02-NF | MPS-190-03-NF | MPS-190-04-NF |
|---|---|---|---|
| Freq(MHz) | 138-960 | ||
| Output Port Number | 2 | 3 | 4 |
| Split Loss(dB) | 3.0 | 4.8 | 6.0 |
| IL(dB) | 0.7 | ≤1.6 | ≤1.8 |
| Isolation(dB) | 20 min | 18 min | 16 min |
| VSWR | ≤1.30 | ≤1.35 | |
| Total Input Power / Impedance | 50W / 50 ohm | ||
| Connector / Color | N-female / Red | ||
| Temp(deg) | -30~+70 | ||
| Application | Indoor or Outdoor, IP65 | ||

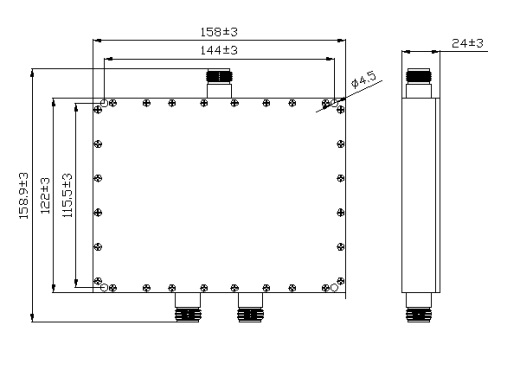

| Size(mm) (exclude connector) | 158*122*24 | 122*158*24 | |
| Weight(kg) | 0.65 | 0.75 | 0.85 |
NOTE: All specifications can be changed as per customer's requirement. Our company offers a variety of products to choose from.
Frequently Asked Questions
- Q1: Why is this power splitter specifically used for Public Safety?
- A: The Red Color and wide frequency band (138-960MHz) are designed to meet strict standards for emergency and critical infrastructure networks.
- Q2: Can I get technical support for my installation?
- A: Yes, we provide 24-hour professional support from our engineers to assist with any technical needs.
- Q3: Is the size customizable for tight spaces?
- A: We offer OEM services and can modify mechanical specifications like size or connectors as per your requirement.
A: Yes, we offer MPS-190 series in 2-way, 3-way, and 4-way models to suit different distribution needs.
