The most dangerous scenario in a multi-operator DAS is rarely caused by choosing a component with a poor PIM specification. The real problem often lies in the band plan itself — the frequency relationship between two downlink bands mathematically places intermodulation products inside another operator's uplink receive band. No matter how good the components are, the products land where they land.

Two of the most typical trap zones overseas are the fragmented 700MHz allocation in the United States and the overlapping 700/800/900MHz low-band deployment in Europe. Both share the same characteristics: many operators, narrow spectrum blocks, and complex adjacency relationships. IM3 and IM5 products have a high probability of covering adjacent operators' uplink resource blocks.

North America 700MHz: Adjacent-Band Mutual Damage

The 700MHz band in the United States is extremely fragmented. AT&T's Band 17 downlink occupies 734–746MHz. FirstNet Band 14 has a downlink at 758–768MHz and an uplink at 788–798MHz. T-Mobile and Verizon 700MHz blocks are interleaved adjacent to them.

The direct consequence of this layout is that IM3 and IM5 products have a high probability of landing in adjacent operators' 700MHz uplink bands. Anritsu test data shows that LTE 700MHz has a modulation bandwidth of 10MHz, but IM3 and IM5 products can extend to 30–50MHz — far wider than a single channel. Intermodulation products generated by one 10MHz downlink signal can simultaneously cover multiple uplink resource blocks across multiple operators.

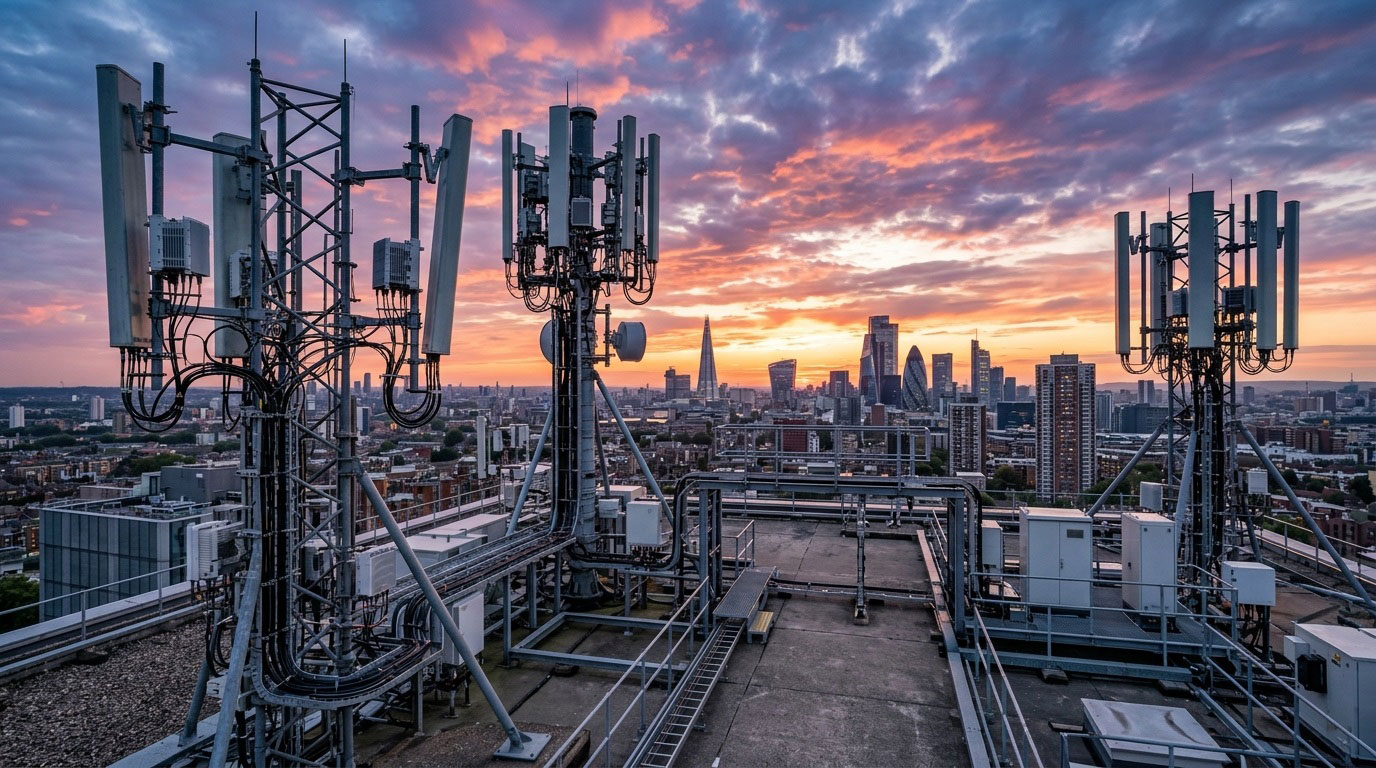

A more insidious problem comes from external PIM. When Band 14 and Band 17 signals illuminate the same PIM source in front of the antenna — a rooftop railing, an air-conditioning unit, a billboard, a metal fence — they generate IM3 products far above the system noise floor. Even if every component inside the DAS meets specification, a single rusted bolt on the roof can degrade both operators' 700MHz uplinks simultaneously. When installing a new FirstNet base station, the site must be verified "PIM Free"; otherwise the new system will raise the noise floor of the existing commercial LTE network at the same time.

Europe 700/800/900MHz: Triple Squeeze

Europe's low-band landscape is more complex than North America's. 700MHz (auctioned around 2021), 800MHz (auctioned in 2013), and 900MHz (extended in phases since the 1980s) — three generations of spectrum interwoven in the same sub-1GHz space.

Field observations from Australia directly mirror the European problem: "As operators introduce more bands — such as 700MHz — the probability of IM3 occurring in the uplink increases significantly. Europe has seen similar situations after introducing 700MHz and 800MHz bands, with IM3 interference affecting both commercial and public safety uplinks."

The UK 900MHz case is more convincing. This band was historically interleaved between Vodafone and VMO2. The fragmented spectrum blocks meant intermodulation products could not be avoided through simple filtering. Coleago's report explicitly states that operators used de-fragmentation restructuring of the 900MHz band to allow Vodafone and VMO2 to deploy wider channels, thereby "better mitigating PIM interference risk." When the band combination itself is a trap, spectrum planning adjustments are more fundamental than component-level optimization.

The Underestimated IM2

Industry discussion of PIM focuses almost entirely on IM3, but the f1 + f2 product of second-order intermodulation (IM2) is equally dangerous in multi-operator low-band combining.

The European 700MHz and 800MHz combination provides a direct calculation. If f1 = 758MHz (700MHz downlink) and f2 = 791MHz (800MHz downlink), then f1 + f2 = 1549MHz. This falls near GPS L1 (1575.42MHz) and within parts of the L-band satellite navigation and aeronautical communication bands. It may not land directly in a cellular uplink band, but the out-of-band interference it creates can affect sensitive receivers inside or around the building.

More threatening is the f2 − f1 difference product. When the spacing between two low-band downlinks happens to equal the center frequency of an uplink band, the IM2 difference product lands directly inside it. Kaelus white papers point out that with the re-planning of 600MHz, 700MHz, 2500MHz, and 3500MHz bands, the risk of cross-band PIM generation is systematically increasing.

How to Handle It in Engineering

Scan intermodulation products during the band planning phase.

After determining which operators and bands the DAS will support, list all two-by-two combinations of downlink frequencies, calculate the IM2, IM3, and IM5 product ranges, and mark which ones fall into uplink bands. This step requires no instruments — only a spectrum allocation table and a calculator.

For high-risk combinations, prioritize spectrum restructuring over component upgrades.

The logic of UK 900MHz de-fragmentation applies to any heavily fragmented low band: making an operator's contiguous spectrum block as wide as possible and reducing the number of band boundaries reduces the probability window for intermodulation products to land in uplink bands. Raising component PIM from -150dBc to -160dBc is far less effective than merging two adjacent 5MHz blocks into a single 10MHz block.

External PIM sources must be part of site acceptance.

North American 700MHz experience shows that external PIM sources — rooftop railings, air-conditioning units, metal enclosures — have a much greater impact in low bands (700–900MHz) than in high bands. Before low-band deployment, perform low-power PIM testing at candidate antenna locations, rather than waiting until after system turn-on to troubleshoot a raised noise floor.

When selecting multi-operator combiners, focus on band combination suitability rather than single-band PIM specs.

A combiner rated -161dBc at 800MHz may have a system-level PIM far worse than its single-band test value when 700/800/900MHz are injected simultaneously. Ask suppliers for PIM data under simultaneous multi-band injection, not just single-frequency reports.

Common Questions

Does the band combination itself generate intermodulation, or is it a component problem?

Intermodulation requires two conditions: multiple frequencies present simultaneously, and a non-linear node. The component's non-linearity is the catalyst, but the product frequencies are determined by the mathematical relationship of the downlink frequencies. Even with a perfectly linear node, certain band combinations will mathematically place products inside uplink bands — the only question is power level.

Are US 700MHz and European 700MHz risks the same in nature?

The mechanism is the same, but the degree of fragmentation differs. The US 700MHz has more operators, narrower spectrum blocks, and more complex adjacency, so the probability of IM3/IM5 products landing in adjacent uplink bands is higher. Europe's 700MHz also has fragmentation issues, but the UK 900MHz de-fragmentation experience offers a path to solve it at the planning level.

Does IM2 really need to be considered in DAS combining?

Yes, especially in sub-1GHz multi-band combining. The IM2 f1 + f2 product is at a higher frequency and may land in GPS, satellite communications, or other out-of-band sensitive bands; the f2 − f1 difference product may land directly in an uplink band. Component vendors typically only specify IM3; IM2 data must be requested separately.

Can Maniron components solve the band combination trap?

Components cannot eliminate the mathematical landing of products. However, Maniron's wideband coverage (340MHz–7125MHz) and low-PIM design (some models ≤-161dBc) can reduce the power level of the products, leaving more system margin. The fundamental solution remains band planning and spectrum restructuring.
